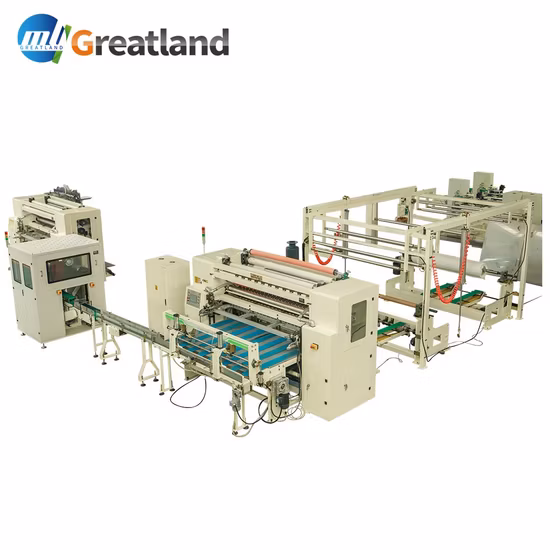

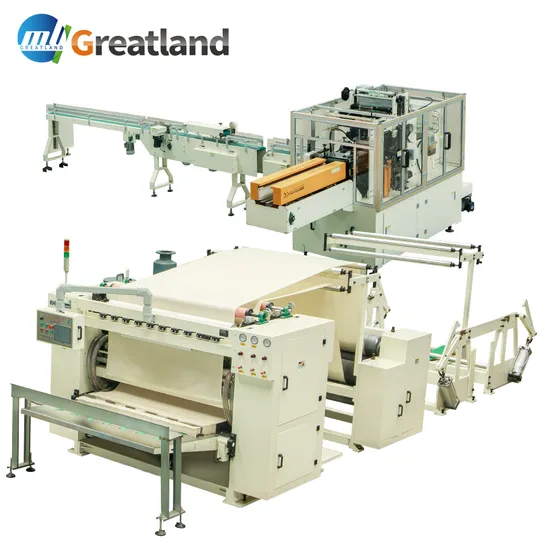

Automatic CE 10L Facial Tissue Paper Making Machine with Embossing Function for Sell

Basic Info

Function	Folding
Tissue Type	Mini
Raw Paper Widht	800-2100
Speed	100-130m/Min
Type	Lavatory Paper
Sheet Former Type	Cylinder Mould
Paper Thickness	Normal Specification Paper
Automation	Automatic
Customized	Customized
Transport Package	Wooden Packing
Specification	CE
Trademark	MY
Origin	Shandong, China
HS Code	8441809000
Production Capacity	1500 Set/Year

Product Description

Features:Box-drawing facial tissue machine use jumbo roll to process and fold into "V" type of paper. The machineadopts the vaccum adsorption principle and auxiliary manipulator folding.1. Automatic counting points a whole row output;2. Helical balde shear, vacuum adsorption folding;3. Stepless speed regulation unwind, It can adjust to use for high or low tension paper material;4. Adopt PLC computer programming control, pneumatic lifting for jumbo roll, easy for operation;5. Frequency conversion contrtol, save energy;6. The width of paper can be adjustable, to meet different market requirement;7. Supporting paper rolling pattern device and edge rolling device, Pattern is obvious, flexible to meetmarket demand.(Pattern selected by customers)It can make "V" type single layer towel and two layers glue lamination.(Optional)

Finished Products Unfolded Size	180x200mm(Other sizes are available)
Raw Material Diameter	φ 1300 mm(Other sizes are available)
Raw Material Core Diameter	76.2 mm(Other sizes are available)
Speed	0-100m/min
Programmable controller	PLC Programmable Controller
Counting system	Alternate stack by stack/ink count
Main Motor Power	5.5-11K WFrequency conversion speed regulator,5.5-11 kw
V acuum suction unit	11- 32KW
Pneumatic System	3 HP air compressor ,mini pressure 5kg/c m2 Pa(Provided by client)
Dimension(Lx WxH)	6370x(1780- -2080)x2130
Weight	4500-7500kg
Programmable controller	Programmable Controller(PLC),LCD screen operation panel
Powerl	Frequency conversion speed
Driving system	Timing belt, motor
Slitting unit	Pneumatic dot slitting
Edge Embossing	Steel to steel, independent adjustment
V acuum suction unit	Roots type vacuum pump

Weifang Greatland Machinery CO., LTD.

Weifang Greatland Machinery belongs to Greatland Group, which is specialized in paper onverting equipment from 2001.In 2015, we built up our new workshop occupied more than 30000 square meters. Greatland always devotes to research and innovation of our products. Apart from normal model, all roducts can be specially customized for our partners. Our products mainly include: Fully automatic high speed toilet paper production line, Fully automatic facial tissue paper production line, Fully automatic hand towel production line, Fully automatic napkin paper production line, Fully automatic pocket tissue production line, Fully automatic neck paper production line, Slitting rewinder series, etc. Annually our products are exported to all over the world with turnover USD 10million. We sincerely hope to establish more cooperation based on our trustworthy quality and in-heart service. Paying continuous attention on the development of paper converting products, GREATLANDers not only devote to creating more and more mutual benefits, but also do the best to improve spiritual pursuit for all of our partners. Sincerely hope we are getting better and better through our joint efforts.

Greatland has professional technical team for installation, commissioning, and related services, also has a very hole some file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.Within the quality guarantee, Greatland settle the problems on site. Q.:Are you a factory or trading company? A.: We are a factory and manufacturer. R.:How does your factory do regarding quality control? A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment. Q.:Where is your factory located? How can I visit there? A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up. R.:What's service or guarantee can you offer? A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
